30C Refrigerating Dryer Air ​Compressor Refrigerated Air Drying System 3.5m³/min Air Capacity 30HP Air Compressors 220V

Note: 1. Please turn on the cold dryer for about 5 minutes before using the gas. 2. It is recommended that the side of the power cable connected to the machine should be against the wall, with the front side at least 1 meter away from the wall and the back side at least 20 cm away from the wall. 3. The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle). 4. Be sure to wrap raw material tape or use liquid sealant when installing.

• 【Refrigerated Dryer Specification】The Compressed Air Dryer with 30HP Air Compressor. 3 precision filter for free.
• 【Adjustable Drain Time】The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle).
• 【Easy to Install】Easy installation with the compact design is ready to use with a small footprint,matches the compressor's displacement, saving energy, easy maintenance and improved reliability.

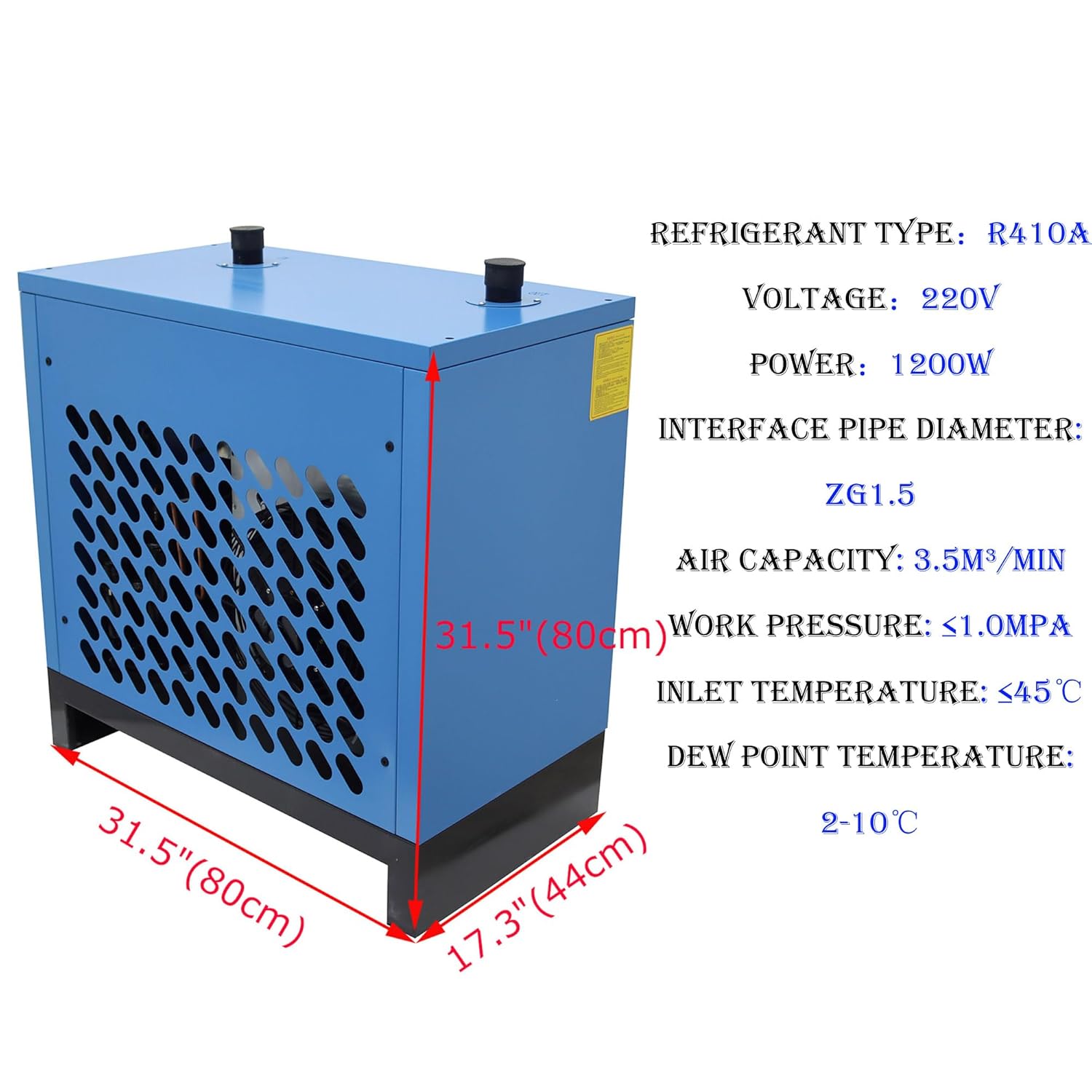

• 【Product Parameter】Voltage：220V;Power：1200W;Interface pipe diameter: ZG1.5;Air capacity: 3.5m³/min;Work pressure: ≤1.0Mpa;Inlet temperature: ≤45℃;Dew point temperature: 2-10℃.
• 【Notice】 It is recommended that the side of the power cable connected to the machine should be against the wall, with the front side at least 1 meter away from the wall and the back side at least 20 cm away from the wall. Be sure to wrap raw material tape or use liquid sealant when installing.Please turn on the cold dryer for about 5 minutes before using the gas.
